Product Overview

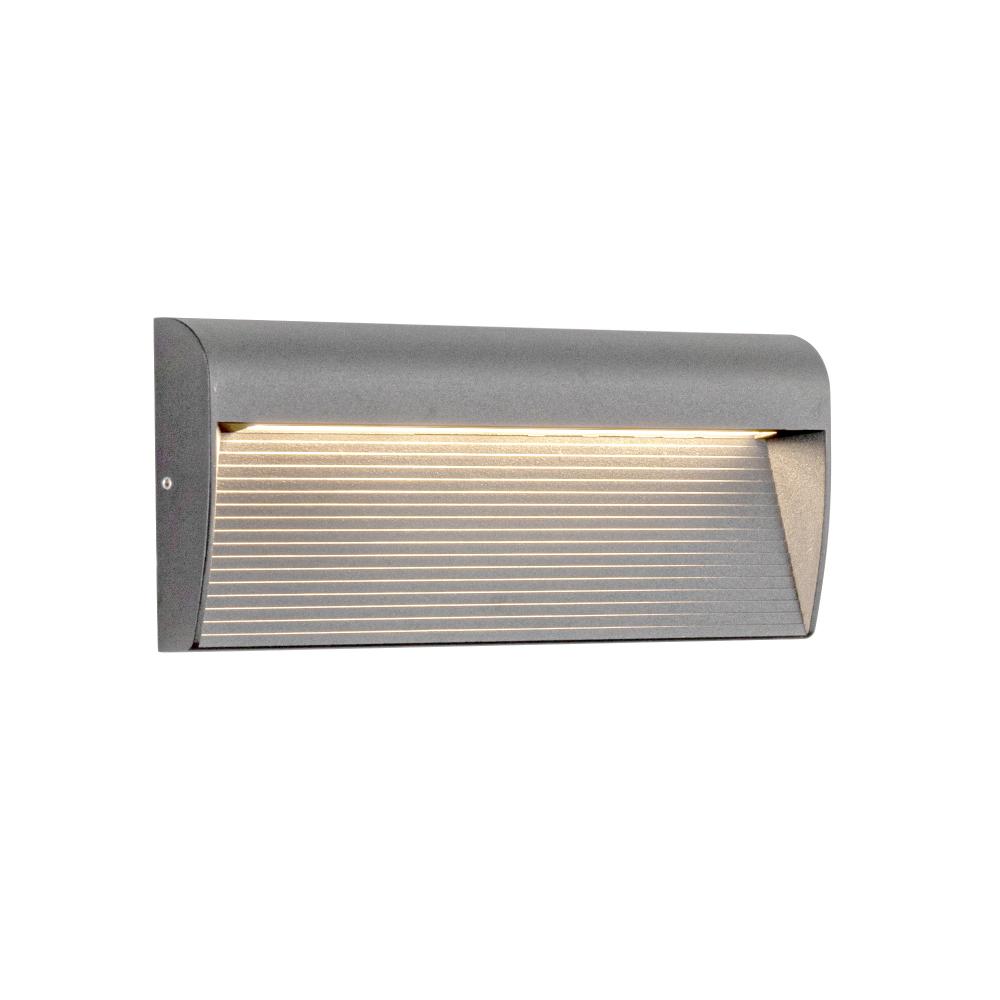

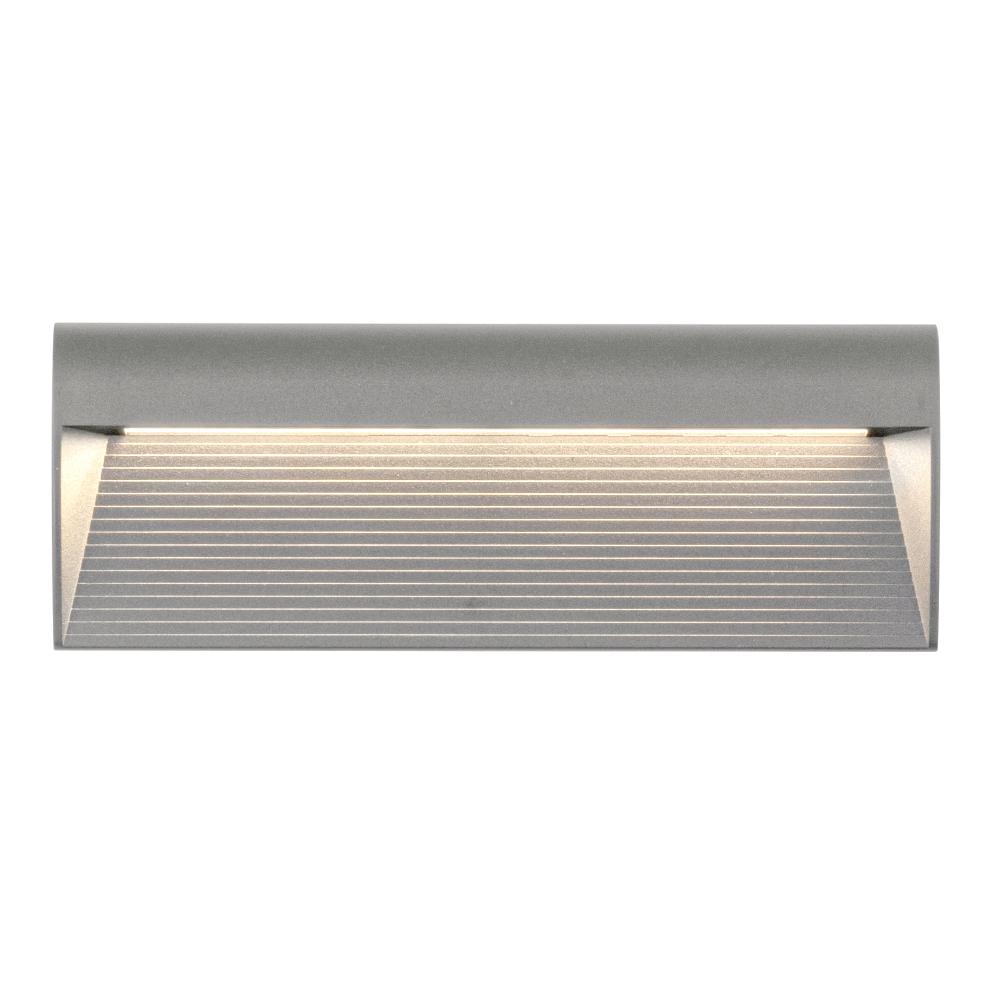

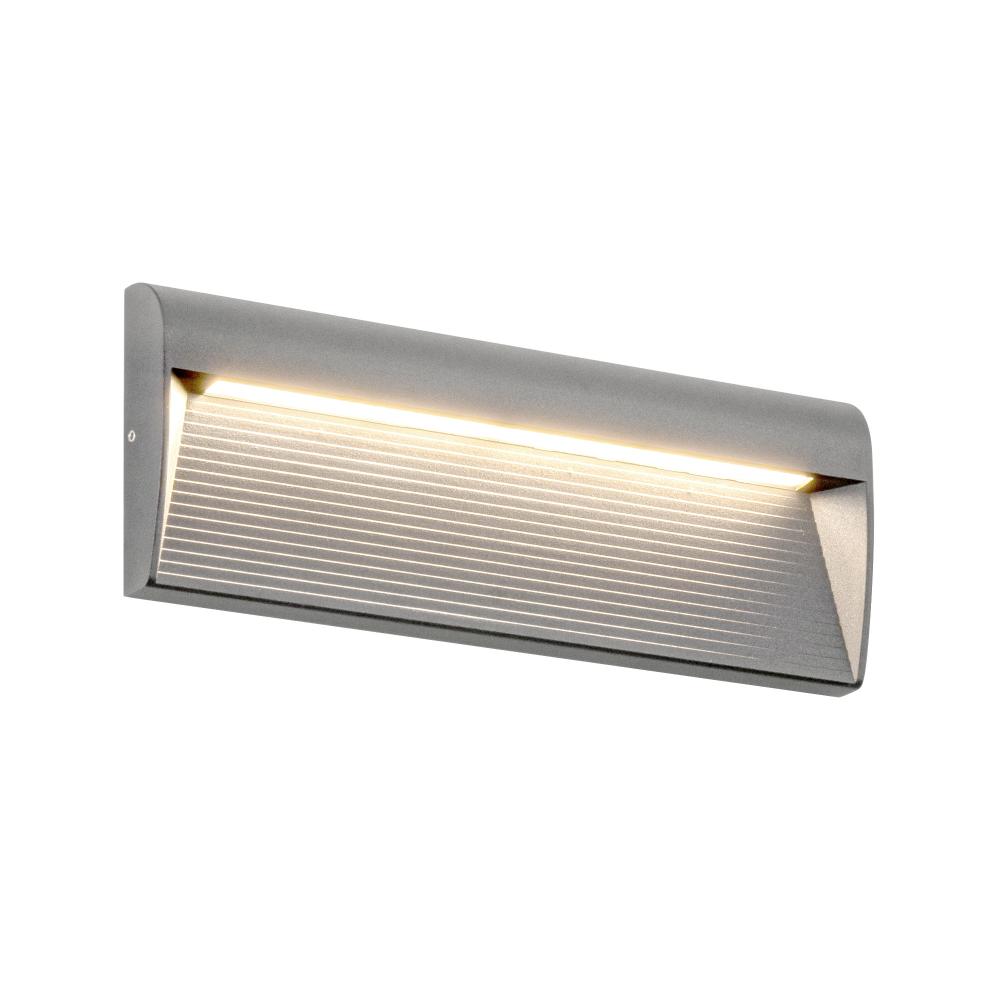

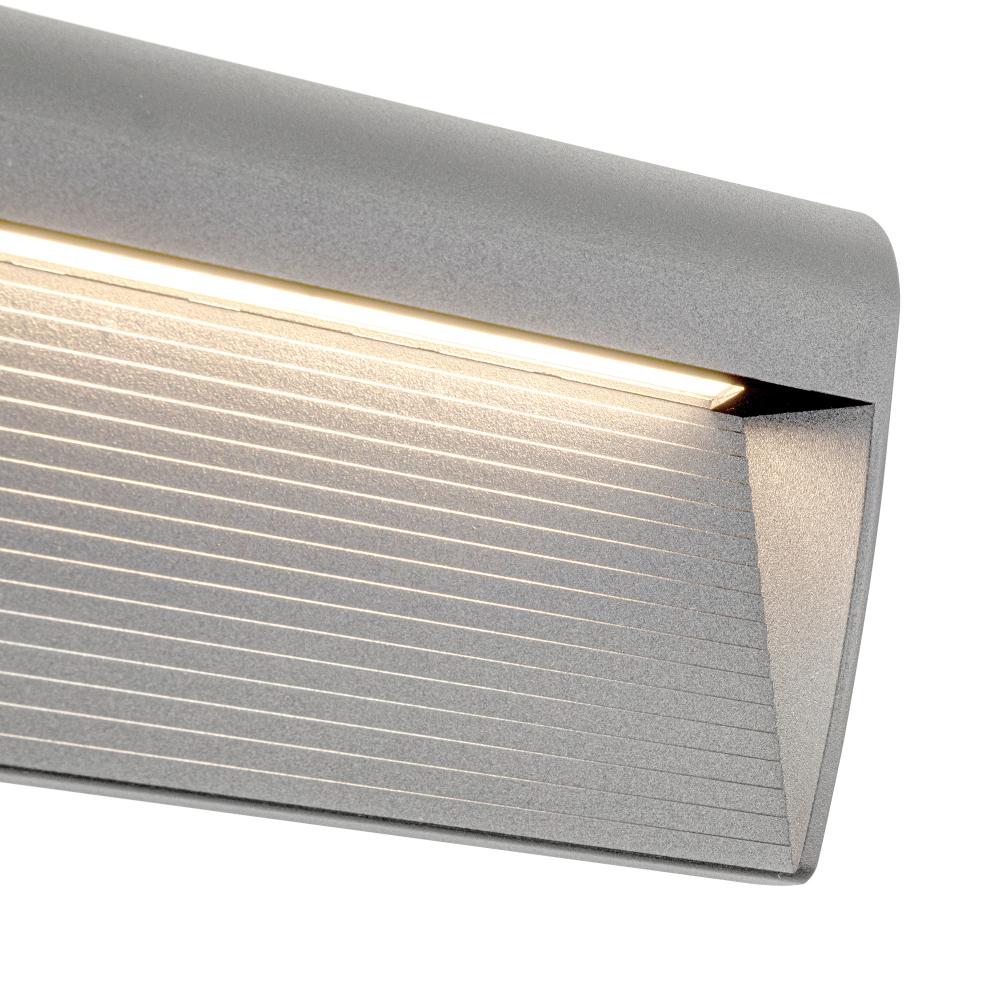

This family of exterior wall-mounted fixtures is available in a variety of geometric forms: circle, square, and two different rectilinear configurations. Light is directed downward from a recess, and the incline allows the glow to radiate gradually. Vanishingly thin and ideal for egress, courtesy, and grace lighting. Optional stone inlays offer additional opportunities for customizing to complement different wall surfaces.

Standard Information

Finish:

Gray

Option:

ADA Compliant

Wet Rated

Refinement Options

Category:

Exterior Wall/Step Lights

Finish:

Gray

Option:

ADA Compliant

Family:

Casa

Glass:

Clear

Voltage:

120 V

Blade Span:

12.38

Bulb Hours:

50000

Extension:

1.13

Introduction Date:

01/01/2018

Kelvin:

3000

Material:

Steel, Polymeric Shade

Ship Carton Height:

7.1

Ship Carton Length:

14.6

Ship Carton Width:

1.5

ADA Compliant:

Yes

Bulb CRI:

90

Country of Origin:

China

Delivered Lumens:

950

Dimming:

100% - 10%

Dimming Type:

ELV Compatible (Optional, Not Included)

Illumination Direction:

Down

IP65 Rated:

Yes

Light Source:

AC LED Module

Location Rating:

Wet Rated

Max Wattage:

21 W

Mounting:

Wall Down Only

Safety Rating:

ETL Approved

Total Lumens:

1700

Volume:

0.002548
