Product Overview

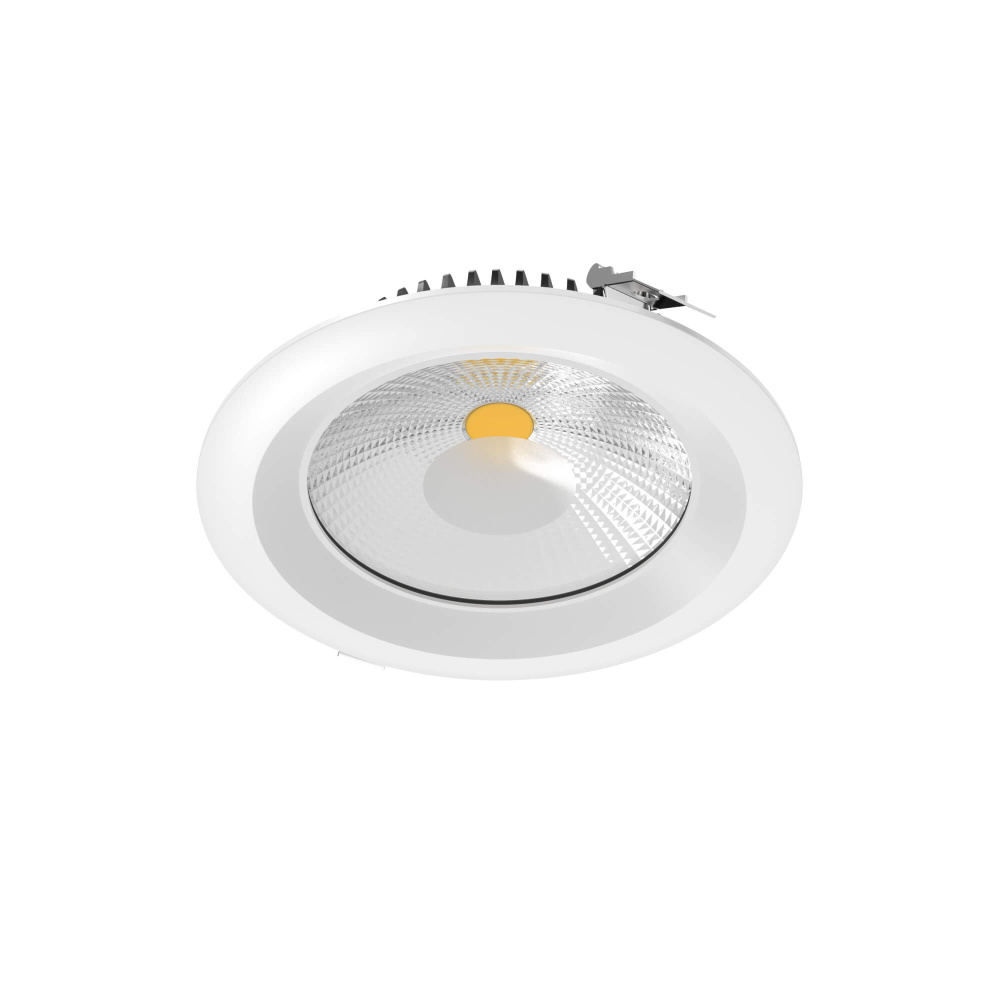

Dals’ new high-powered recessed downlight is a go-to for your commercial projects. With its five color temperatures to choose from, a cast aluminum housing, high lumen output, and indoor/outdoor rating, this can be installed just about anywhere. From clinics to schools and hotels to boutiques, this is the only slim recessed fixture you will need.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Style:

Contemporary

Option:

Energy Star

Title 24

Outdoor

Wet Rated

Prop 65

Location Rating:

Wet Rated

Wattage:

40w

Refinement Options

Category:

Recessed

Subcategory:

Regressed

Finish:

White

Family:

Hilux

Voltage:

120 V/277 V/347 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Harmonized Codes:

9405.10.00.91

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

3.5

Ship Carton Length:

10

Ship Carton Width:

9

Ship Weight:

3.02

Warranty:

5 Years Limited

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

121°

Bulb CRI:

90

Country of Origin:

China

Delivered Lumens:

2600

Dimmer Type:

0-10V

Energy Star:

Yes

IC Certification:

Yes

Indoor:

Yes

JA8:

Yes

Lens Material:

Glass

Location Rating:

Wet Rated

Max Wattage:

38 W/40 W/43 W

Maximum Working Temperature:

40°C

Minimum Working Temperature:

-20°C

Outdoor:

Yes

Prop 65:

View

Safety Rating:

ETL Approved

Shipping Master Height:

18

Shipping Master Length:

21

Shipping Master Quantity:

10

Shipping Master Weight:

30

Shipping Master Width:

10

Title 24:

Yes

Wiring:

Hardwired

50,000 hours service life

Compatible with TRIAC and ELV dimmers

Every fixture includes a junction box with an integrated driver

Suitable for wet locations

Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
